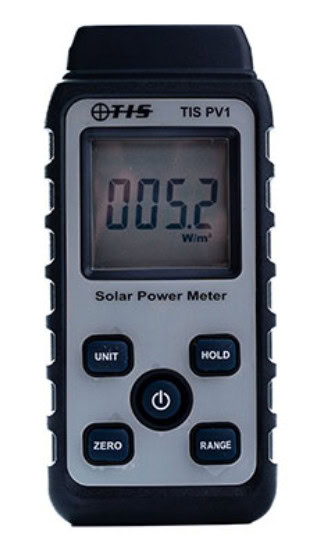

TIS Solar Irradiance Meter. TIS PV1

The TIS PV1 Solar Power Meter is used to measure Solar Power.

Solar Radiation Measurement
Transmission Measurement for measuring the effectiveness of Solar Film
Car Window Light Intensity Measurement
Measurement of the Sun’s Transmission through Transparent and Film Glass
Easy to use and the Information is Displayed Automatically

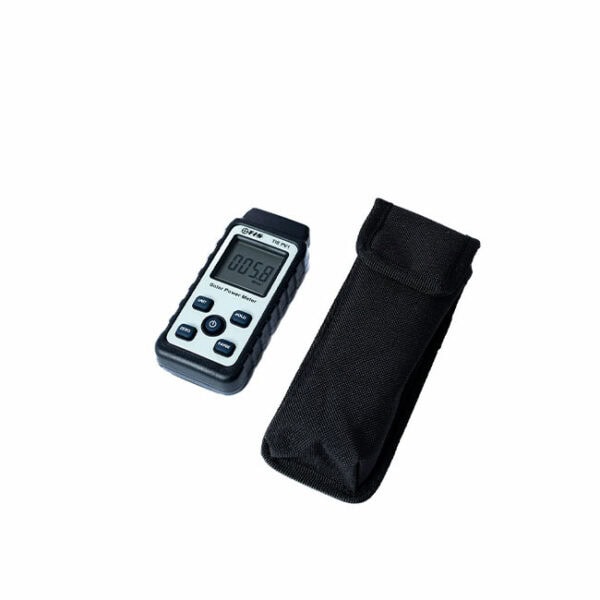

Complete with Carry Case
Measures up to 1999W/m2 or 634 BTU
Overload Display
Selectable Range W/m2 ot BTU (ft2 x h) units 1
Stable Readings
Data Hold
Zero Display
Low Battery Warning (Battery Life: approx. 50 hr)
Auto Range
3 ¾ LCD Display
Optimal Incident Angle for Solar Panels

Specification

ASIC FUNCTIONS

• Range 1999W/m² or 634 BTU/(ft2 x h)² Accuracy Typically within ±10W/m2 [±3BTU / (ft2 x h) or ±5%
• Additional Temp. induced error ±0.38W/m2/°C (±0.12BTU / (ft2 x h)°C from 25°C
• Operating Temp. & Relative Humidity 5°C ~ 40°C, below 80% RH
• Resolution 0.1W/m2 or 0.1BTU / (ft2 x h)

GENERAL SPECIFICATIONS
Power 2 x 1.5V AAA MN2400
Weight 90g
Size 134mm x 48mm x 27mm
Standard Accessories User Manual & Carrying Case
