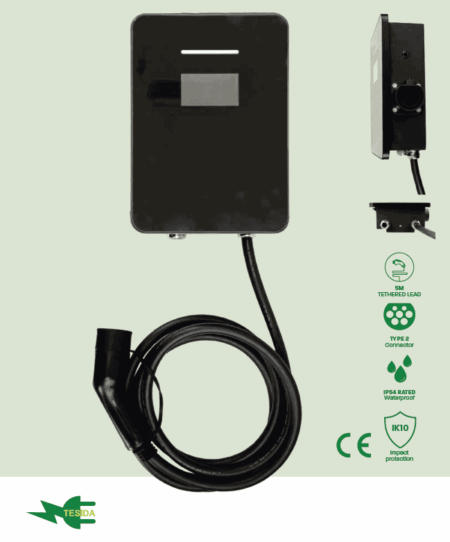

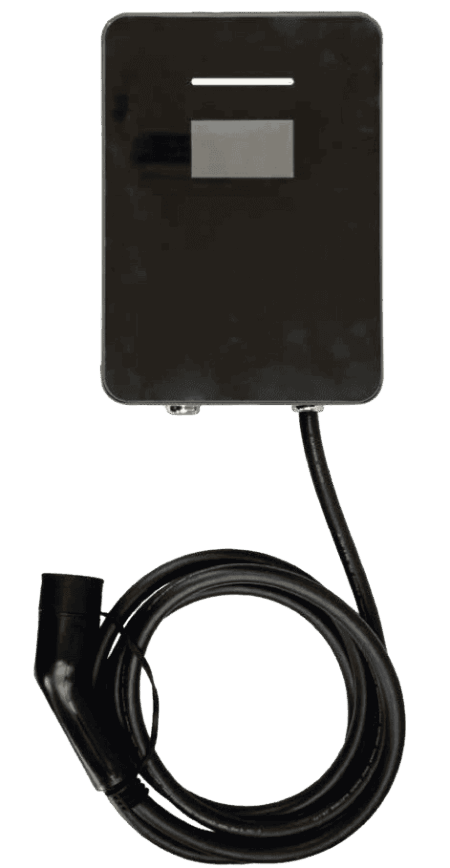

TSDACCG005ALM-RFID-4G Tesida Tethered 7.4kW/32A + Load Management + RFID (4G)
- 5m tethered
- Robust metal construction
- Provided with pre-activated 12 month 4G SIM card (if requested)
- UK support team available (really helpful and supportive team)
- PEN Fault detection
- 4G SIM CARD included
- 4.3″ backlit screen
- Plug & Play, App or Monta charge authorisation
- Wall or post-mountable
- Recommended for schools, landlords, airbnb, small commercial installations
The device is pre-loaded with Monta management software making it quick for installers to set up and connect their customers to a simple billing system.
UNIQUE MANUFACTURER INSTALLATION ASSISTANCE AVAIALBLE FOR TESIDA CHARGE POINTS – PLEASE CONTACT US FOR INFORMATION
Full data sheet is available here Series 3 Tesida Data Sheet 7.4kW Tethered
Technical Specification
Power Supply 1P+N+PE
Rated Voltage 230V AC
Rated Current 16/32A
Frequency 50Hz±2Hz
Output Voltage 230V AC
Maximum Current 16/32A
Rated Power 7.4kW
Charge Connector Type 2 cable
Cable Length None
Enclosure Steel
LCD Display 4.3” screen, touchscreen programmable
Start Mode Plug &Play/RFID card/APP control
Emergency Stop Yes
Ingress Protection IP65
Impact Protection IK10
Leakage Protection TypeA+DC6ma
Ground Protection PEN Fault
Electrical Protection Over current protection, Residual current protection, Surge protection, Over/Under voltage
protection, Over/Under frequency protection, Over/ Under temperature protection
Certification CE
Certification Standard EN 61851-1: 2017, EN 61851-21-2: 2018
Warranty 3 years
Installation Wall-mount/Pole-mount
Work Temperature -30°C~+50°C
Work Humidity 5%~95%
Work Altitude <2000m
Product Dimension 361*261*114mm (H*W*D)
Package Dimension 490*380*200mm (L*W*H)
Net Weight 5kg
Gross Weight 6kg
External Package Carton
Load Management Available
Application Monta App
5m Tethered Wall Box
7.4kW 16/32A
