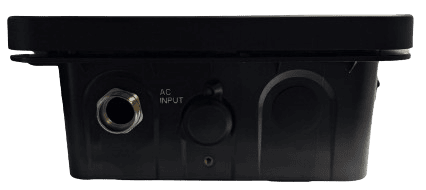

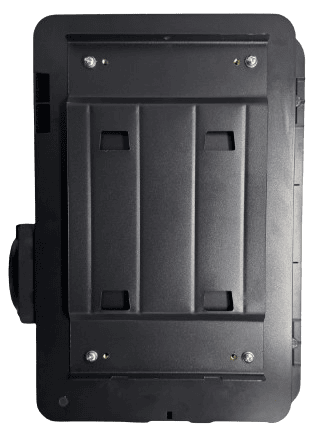

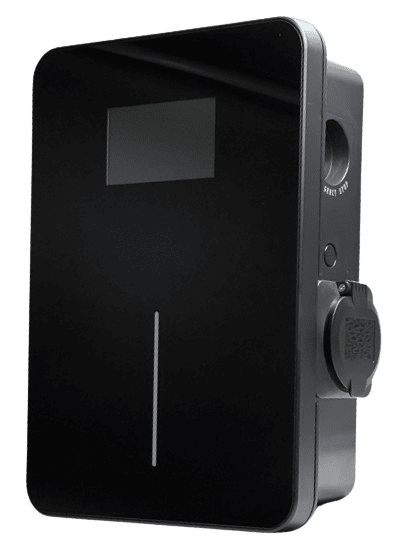

Tesida Single Phase 32A 7kW Untethered Wall Box with Load Management, LAN and Wi-Fi. TSDACCT201ALM
£265.00
{£318.00} Inc VAT
Tesida Single Phase 32A 7kW Untethered Wall Box with Load Management, LAN and Wi-Fi. TSDACCT201ALM
- Robust polycarbonate construction
- UK support team available (really helpful and supportive team)
- PEN Fault detection
- 4.3″ backlit screen
- Wall or post-mountable
- Recommended for schools, landlords, airbnb, small commercial installations
Technical Specification
Power Supply 1P+N+PE
Rated Voltage 230V AC
Rated Current 16/32A
Frequency 50Hz±2Hz
Output Voltage 230V AC
Maximum Current 16/32A
Rated Power 7.4kW
Charge Connector Type 2 cable
Cable Length None
Enclosure Steel
LCD Display 4.3” screen, touchscreen programmable
Start Mode Plug &Play/RFID card/APP control
Emergency Stop Yes
Ingress Protection IP65
Impact Protection IK10
Leakage Protection TypeA+DC6ma
Ground Protection PEN Fault
Electrical Protection Over current protection, Residual current protection, Surge protection, Over/Under voltage
protection, Over/Under frequency protection, Over/ Under temperature protection
Certification CE
Certification Standard EN 61851-1: 2017, EN 61851-21-2: 2018
Warranty 3 years
Installation Wall-mount/Pole-mount
Work Temperature -30°C~+50°C
Work Humidity 5%~95%
Work Altitude <2000m
Product Dimension 361*261*114mm (H*W*D)
Package Dimension 490*380*200mm (L*W*H)
Net Weight 5kg
Gross Weight 6kg
External Package Carton
Load Management Available
Application Monta App
Untethered Wall Box
7.4kW 16/32A
Downloads
Delivery information
This product is delivered directly from the manufacturer, and requires preparation, building or commissioning prior to dispatch.
Dispatch is 1-3 days from the date of order, and delivery is a 24 hour service.
Any available delivery tracking information will be added to your order, and emailed automatically, as soon as it is available
-
-
