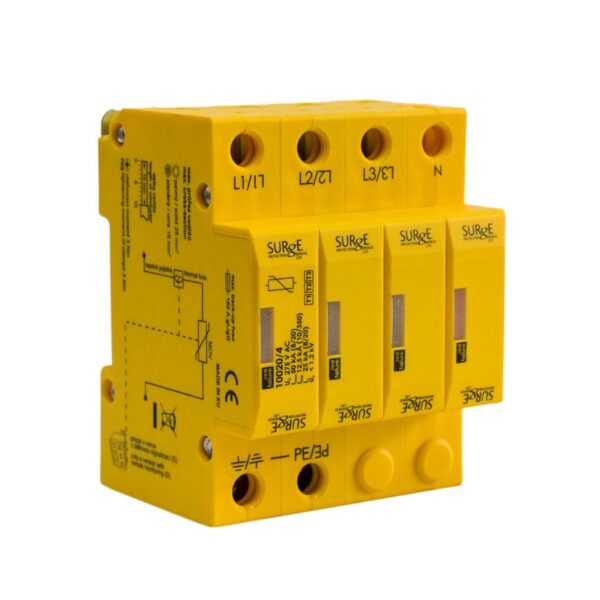

Type 1+2+3, 50KA (Level 3/4), 3 phase device with indication. 10020/4

£345.00£396.00

Quantity:
Qty:
Categories: Surge Protection DevicesTags: SPDsSKU:

Lightning protection level 3, 50KA 10/350μs.

Fully compliant to BSEN62305, BS61643-11 & BS7671.

Combined arrester Type 1+2+3 can handle direct lightning strikes and protect sensitive electronic equipment.

Low let through voltage <1.2kV.

Visual indication of status.

Will extinguish follow currents after activation.

Remote changeover contacts can be linked to BMS, buzzer, light etc.

Din rail mountable.

Fast response time <25ns.

Minimum backup fuse / MCB 63A.

Recommended cable size 25mm².

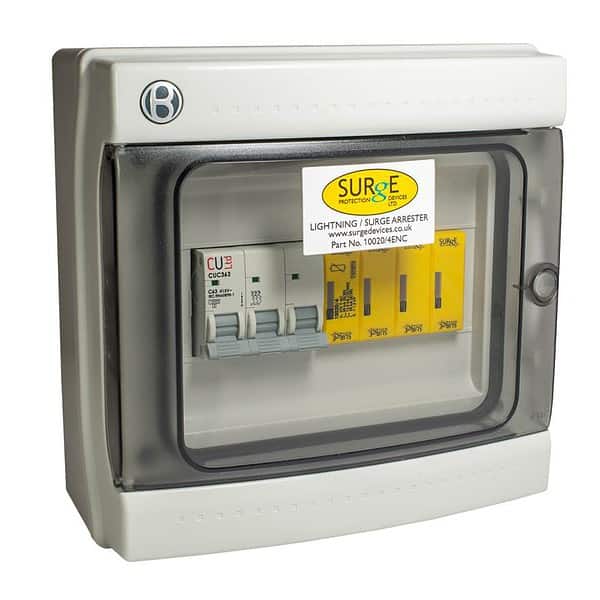

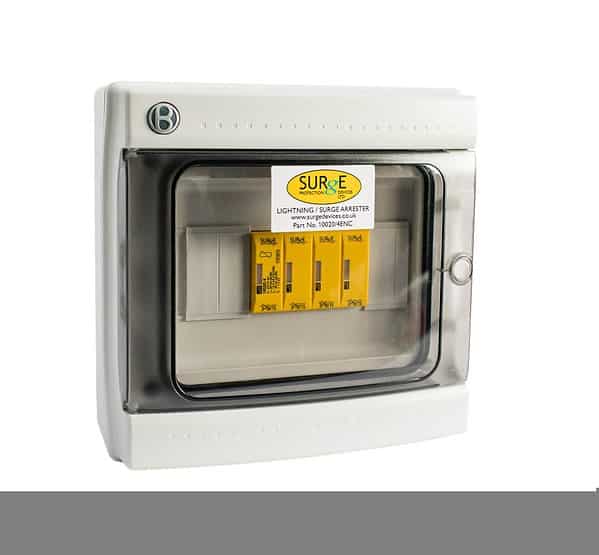

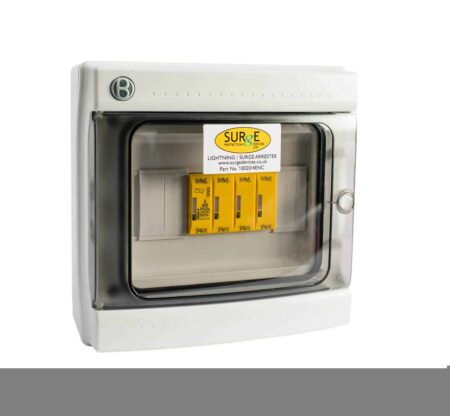

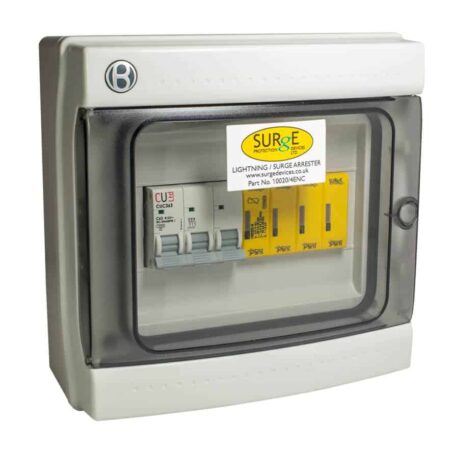

Can be supplied in polycarbonate IP65 or metal housing at an additional cost.

Manufactured in Europe.
