WCED 5 pole 100A auto reset device
£54.00
(£64.80 Inc. VAT)
Available
Available

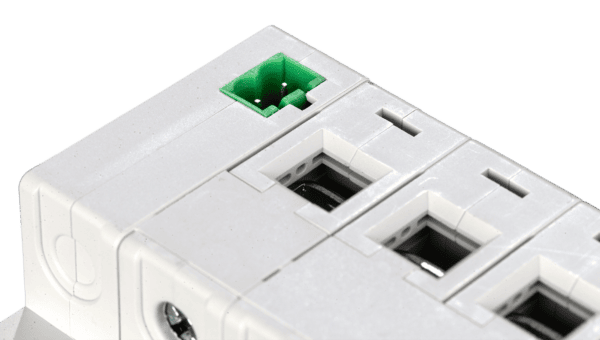

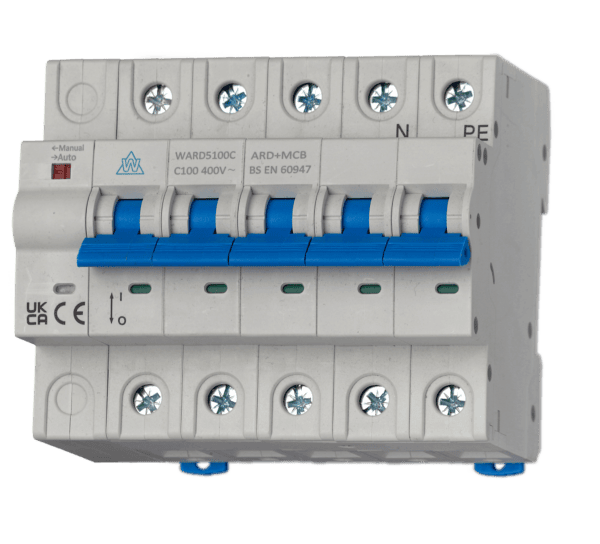

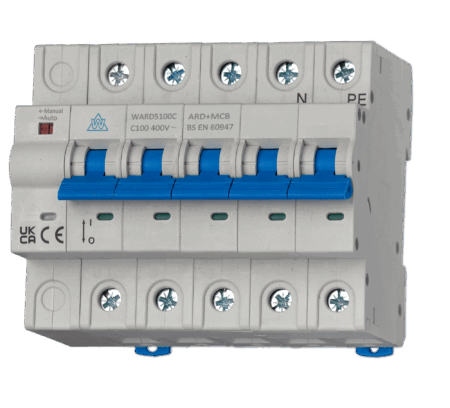

WCED 5 pole 100A auto reset device. WARB5100C
The WCED WARB5100C is a 5 Pole 100A Auto Resetting MCB designed for advanced 3-phase where neutral and earth monitoring is required. It combines overload, short-circuit, and voltage monitoring with automatic reset after under-voltage events – reducing downtime on critical installations.
With integrated PME protection the WARD5100C is trusted for EV charging and other renewables and commercial three-phase distribution. Compact and compliant with BS 7671 (18th Edition), it’s built for residential, commercial, and industrial installs requiring maximum safety and reliability.
- 5 Pole, 100A rated – covers 3 phase + N + E protection
- Auto reset after under-voltage; manual reset after over-voltage
- PME fault protection – no earth rod required on TN-C-S supplies
- Overload & short-circuit protection – IEC/EN certified
- Complies with: BS EN 60898-1, BS EN 60947, BS EN 50557
- Dimensions: 107.2mm (W) × 82.4mm (H) × 78.5mm (D)
Specifications
- Rated Current: 100A
- Rated Voltage: 230V/400V AC
- Rated Insulation Voltage: 500V
- Frequency: 50/60Hz
- Short Circuit Capacity: 6kA
- Impact Resistance Voltage: 6kV
- Tripping Characteristics: C (5In~10)
- Operating Range: 207V – 253V (disconnects within 5 seconds)
- IP Rating: IP20
- Ambient Temperature: -25°C to +55°C
- Storage Temperature: -35°C to +55°C
- Pole Configuration: 5 Pole (3P+N+PE)
-
-
