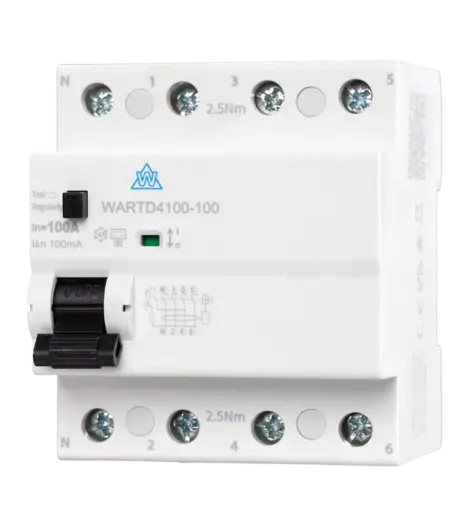

WCED 4 Pole A-Type Time Delay RCD. WARTD4**-100
Price range: £27.25 through £35.00
WCED 4 Pole A-Type Time Delay RCD. WARTD4**-100
This product contains a RCBO which is bi-directional
WARTD463-100 , WARTD480-100 , WARTD4100-100
The WCED brand Time Delayed RCD is used typically when two RCDs are installed in series, and the time delayed RCD enables
discrimination, i.e. in the event of a fault only the ‘upstream’ RCD should trip
- Residual current characteristics: A
- Rated operational voltage: 230/400V
- 50Hz Earth-leakage sensitivity: 30,100, 300mA
- Rated conditional short-circuit current: 6kA
- Mechanical durability: 4000 cycles
- Electrical durability: 2000 cycles
- IP degree of protection: IP20 conforming to:
- BS EN 60529 Ambient temperature: -25 ° C — +40 ° C
- Complies with BS EN 61008-1
- Recommended Torque: 2.5Nm
-
