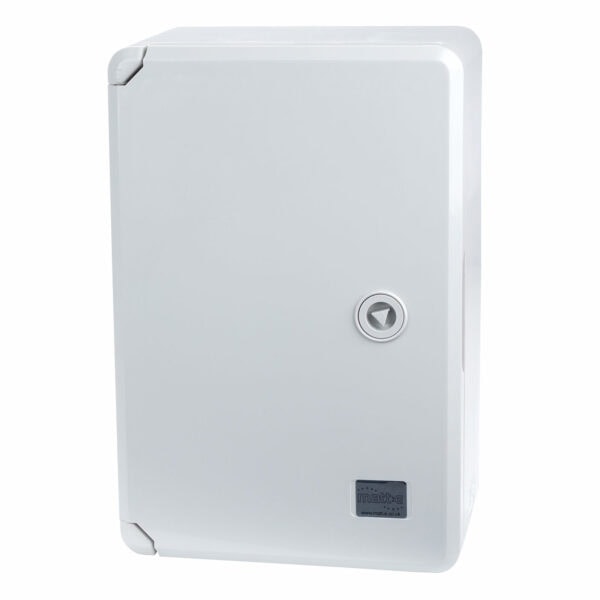

matt:e IP-EVCP-M Single phase IP65 rated connection centre with 32A double pole MCB.
£193.66
{£232.39} Inc VAT
matt:e IP-EVCP-M Single phase IP65 rated connection centre with 32A double pole MCB.
The IP-EVCP-M from Matt:E is an IP65 rated, simple single connection centre that allows for the connection of 1x 32A single-phase charge point to the existing PME earthing facility without the use of Earth electrodes, saving time during survey and installation.
It incorporates a unique monitoring device that disconnects all poles including CPC in the event of a broken Neutral fault in line with Regulation 722.411.4.1(iv).
Product Features and benefits
- Single connection unit for 1x 32A charge point
- Built in Matt:E technology
- No Earth electrodes required
- Built-in 32A MCB
- Simple wire in wire out connection
- Designed and built in the UK
- Standard 3 Year parts warranty
- BS:7671 2018 Amendment 1 2020 compliant
Specifications
- Colour – Light grey
- Dimensions (H x W x D) – 300 x 200 x 129mm
- Frequency – 50Hz
- Guarantee -3 years
- IP rating – IP65
- Material – ABS-HB flame retardant plastic
- Voltage rating -230V, single-phase
- Build Type – Pre-configured connection centre
- Main Incoming Supply – Single-phase (230V)
- Incoming Supply Rating – 32A
- Load Curtailment – No
- Protection Included – MCB only
Downloads
Delivery information
This product is delivered directly from the manufacturer, and will be prepared to your specific order.
Dispatch is 4-7 days from the date of order, and delivery is a 24 hour service.
Any available delivery tracking information will be added to your order, and emailed automatically, as soon as it is available.
Made to Order
This item is made to order, or shipped from overseas to order. Please expect a 3-5 working day lead time before dispatch.
Under our Returns policy, this items is not eligible for return, for either business customers or consumers.
-
-
