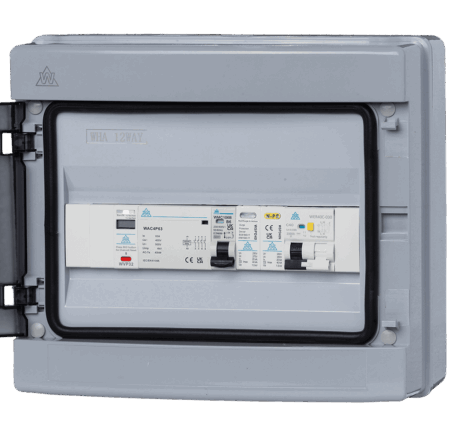

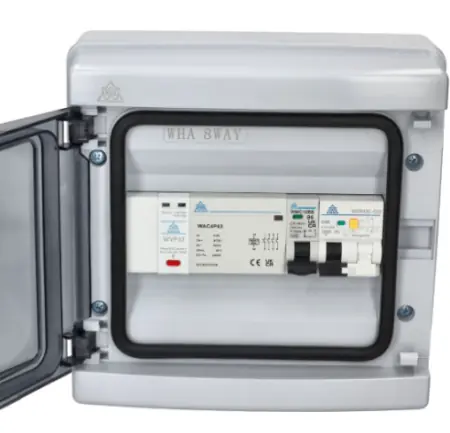

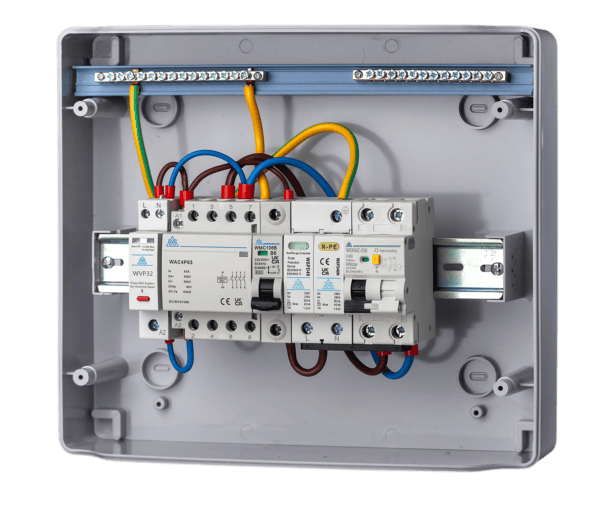

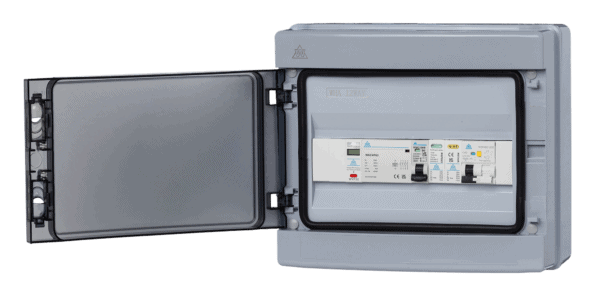

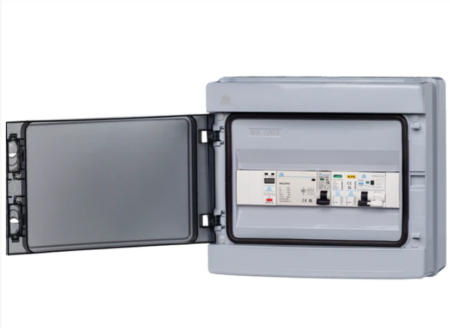

WCED 8 mod IP65 40A RCBO + SPD PME Plastic Loss Unit. WPEPME08/SP

WCED 8 mod IP65 40A RCBO + SPD PME Plastic Loss Unit. WPEPME08/SP
IP65 40A C curve
Dimensions (W x H x D mm) – 295 x 255 x 140

The PME is an EV ( electric Vehicle) distribution consumer that will completely disconnect all phases and earth if a PME fault is detected. It provides a safer and compliant electric vehicle charging solution. There is no need for an earth rod if this distribution board is used. It is suitable for EV chargers with integral DC leakage protection but no PME fault detection.

1) Automatically monitors the supply voltage on both 230V & 240V
2) Within 5 seconds in the event of an under-voltage of less than 207V or an over-voltage of
more than 253V Live, Neutral & Earth will be isolated.
3) Following an under-voltage isolation, will automatically reset when normal operating range is
restored.
4) Following an over-voltage isolation, on the grounds of safety, you will need to press the “RESET”
button of WVP32 to reset the device.
