Tesla E Wall Connector, Generation 3, Tethered, Charge Point. 1529455-02-E
£375.00
{£450.00} Inc VAT
10 in stock
Buy together and save £20
(Tesla bundle) WCED PME Fault Detection metal CU with RCBO and Surge Protection. WMEPME08/SP-40C
£59.00
Save £20.00
BUNDLE OFFER
Total
£434.00
4.41% OFF
- Description
- Delivery information
- Tesla Charge point commissioning
- Technical specficiation
- Documentation

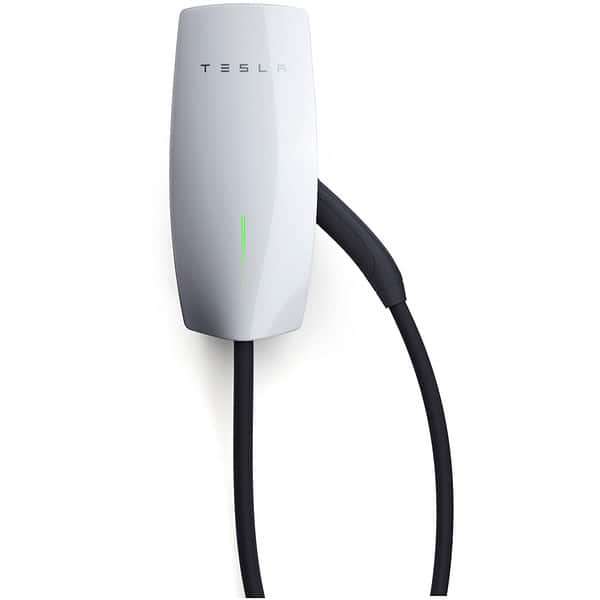

Tesla E Wall Connector, Generation 3, Tethered, Charge Point. 1529455-02-E
The Tesla Wall Connector Generation 3 is a charging solution for both tesla and non tesla vehicles.
- Compatible with any type 2 charge port.
- Schedule, manage and track charging from the Tesla app
- Wi-Fi connectivity for over-the-air firmware updates
- Up to 71 km of range per hour
- Up to 22 kW with three-phase charging grids
- Power sharing to support multiple Wall Connectors
- Installation with single or three-phase grids
- Tesla charge port opening from connector
- 7.3 m cable length
Delivery information
This product is delivered directly from the manufacturer or supplier, and is usually dispatched same or next day, depending on the time your order is made. The courier operates a next-day service.
Delivery tracking information will be added to your order, and emailed automatically, as soon as it is available
Tesla Charge point commissioning
It is recommended that installers complete Tesla’s online training, prior to installing
Technical specficiation
| ype | Tethered Charge Point |
|---|---|
| Supply Voltage | 230 or 400V AC |
| Supply Phase | Single Phase or Three Phase |
| Power Output Per Socket | 7.4 / 22kW |
| Maximum Current | 32A |
| Socket Type | Type 2 |
| Number of Output Sockets | 1 |
| Tethered | Yes |
| Tethered Cable Length | 7.3m |
| Dynamic Load Management | No |
| PME Protection | No |
| Residual Current Detection (Type A 30mA) | Yes |
| DC Leakage Protection (6mA DC) | Yes |
| Dimensions (H x W x D) | 345 x 155 x 110mm |
| Weight | 6.8kg |
| Warranty | 48 months (Domestic), 12 months (Commercial) |
| IP Rating | IP55 |
| IK Rating | Not Specified |
| Mounting | Wall or Post |
| Colour | White |
| Smartphone App | Yes |
| Bluetooth | No |
| 4G | No |
| WiFi | Yes |
| Ethernet (RJ45) | Yes |
| OCPP 1.6J | Yes |
| Solar Integration | No |
